Tshuab Taw Qhia
CK-3DUV series laser uv npav tshuab yog thawj zaug hauv tsev ultraviolet laser npav tshuab nruab nrog peb-axis tswj tshuab. Nws tuaj yeem kos rau ntawm qhov tsis sib xws, qhov chaw arc thiab lwm qhov chaw tshwj xeeb zoo li tus, thiab tau siv dav hauv kev lag luam high-end ntawm ultra-fine laser ua.
Tshuab Parameters
|
Qauv nab npawb |
CK-3DUV |
|
Tso zis zog |
3w, 5w, 10w, 12w, 15w |
|
Wave Length |
355nm ua |
|
Ua Haujlwm Loj |
100 * 100mm -200 * 200mm (tuaj yeem kho tau) |
|
Focal Depth |
± 20mm / ± 30mm |
|
Marking Method |
3-axis dynamic tsom |
|
Lub taub hau scan |
CK 3D galvo taub hau / Scanlab BasiCube |
|
Tswj Daim Npav |
CK-PCI |
|
Tswj Software |
3 DLASER |
|
Cov ntaub ntawv hom txhawb |
Bitmap Formats:*.png;*.jpg;*.jpeg;*.gif;*,tif;*. tiff;bmp;*.ico:*.emf;*.wmf Vector Graph Formats: *.plt,*.dwg,*.dxf,*.svg*.eps,*.ai STL 3D nyem cov ntaub ntawv hom thiab lwm yam. |
|
Fais fab mov |
Ib theem 110v / 220v 50hz / 60hz |
|
Environment Requirement |
Ua haujlwm kub: Qhov zoo tshaj plaws 22-25 degree, qhov siab tshaj 15-35 degree Ua haujlwm av noo: Zoo tshaj 40%-60%, huab cua ntau 20%-80% Ua haujlwm tam sim no: 28A, ntau yam 22A ~ 30A |
|
Tshuab Loj |
1419 * 1248 * 2073 hli |
Tshuab Zoo
Qhov no laser uv marking tshuab yog yam ntxwv raws li nram no:
1. Cov nyhuv thermal me me
Muaj ze li ntawm tsis muaj cua sov tsim thaum lub sijhawm ua haujlwm, thiab kev ua haujlwm muaj qhov cuam tshuam me me rau ntawm cov khoom nto.
2.High cov ntaub ntawv nqus tus nqi
Tsuas yog cov khoom siv tooj liab, UV laser tuaj yeem siv rau ntau cov ntaub ntawv.
3.Hloov cov qauv saw molecular
UV laser beam yog lub zog siab molecule, thiab vim tias lub zog siab ntawm ib qho photons, ultraviolet lasers ncaj qha rhuav cov tshuaj lom neeg ntawm cov khoom molecules los tsim cov nyhuv etching (txias ua haujlwm).
4.Suitable rau ultra-zoo ua
Ua tsaug rau nws "txias ua" cov yam ntxwv, nws yog dav siv nyob rau hauv lub teb ntawm precision machining.
5.Unique ergonomic tsim
Tus tsim sab nrauv siv lub qhov rooj sab sauv thiab sab hauv lub cev muaj zog rau kev ua tiav tag nrho, thiab siv cov khoom zoo tshwj xeeb laser filtering tiv thaiv plexiglass los ua lub qhov rais tshwj xeeb saib, tsim kom muaj kev tiv thaiv qhov kawg ntawm tag nrho lub tshuab.
6.Advanced 3D tswj tshuab - Z-axis tsom xam nyiaj
7.Advanced 3-axis tswj tshuab - tus kheej tsim 3DLASER tswj software
Nrog tshwj xeeb 3D tswj software technology thiab cov ntaub ntawv importing muaj nuj nqi, 3DLASER tswj software yuav hloov (STL hom) rau hauv 3DLASER tshwj xeeb hom. Tom qab hloov dua siab tshiab, lub software mapping lossis wrapping muaj nuj nqi yuav siv tau los muab cov ntsiab lus engraved mus rau lub hom phiaj nto.
8.Reliable UV laser qhov chaw
Siv qhov txhim khu kev qha UV laser qhov chaw, nws tuaj yeem ruaj khov tso zis ultraviolet laser nrog lub wavelength ntawm 355nm, nrog rau qhov chaw me me, qhov tso zis ntau zog thiab lub neej ua haujlwm ntev dua.

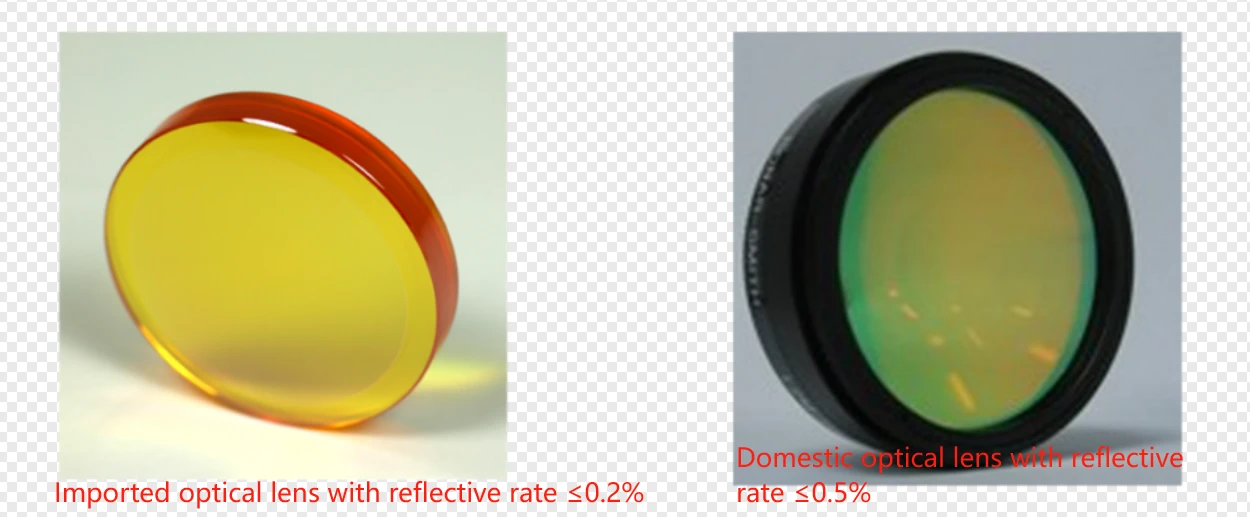

9.Core kom zoo dua--Imported optical lo ntsiab muag
Qhov me dua qhov kev cuam tshuam, qhov me me ntawm lub laser poob thiab ntau dua qhov tso zis laser zog.
10.Expanded muaj nuj nqi
Cov qauv no tsim nyog rau kev ua haujlwm tas mus li thiab ntau ntawm cov kab sib dhos, muaj ntau yam kev xaiv xaiv xws li kev sib hloov disk, conveyor siv thiab lwm yam tuaj yeem nruab.
Daim ntawv thov tshuab
Qhov no laser uv marking tshuab tsim thiab tsim los ntawm CKLASER yog tsuas yog siv rau ultra-fine marking, tshwj xeeb cov khoom cim thiab engraving. Lawv tsim nyog rau kev kos npe thiab kev kho deg ntawm silicone, ceramics, ntau yam iav, LCD cov ntxaij vab tshaus, PCB ua, polymer films thiab lwm yam ntaub ntawv.
